WR575 5G Industrial Router
Original price
$1,520.00
Sale price
$1,020.00
5G Industrial Router
Equippedw with 300Mbps connectivity of LTE Cat 6, 4 GE ports, Wi-Fi 6, serial ports and abundunt I/O ports,Plus WAN failover, WR565 is able to provide high-speed and non-interruptible access for IoT and M2M applications.
Remarks (optional)
Up to 500 characters.
Quantity
Hardware
| Ethernet | 4*10/100/1000Mbps Port |
| Cellular | 5G NR |
| Wi-Fi | Wi-Fi 6 AX1800 2.4GHz 2*2, 5.8GHz 2*2 |
| Serial Port | 1*RS232 + 1*RS485 |
| I/O | 6*DI + 2*DO + 1*AI+1*RELAY |
| PoE | Active PoE PD |

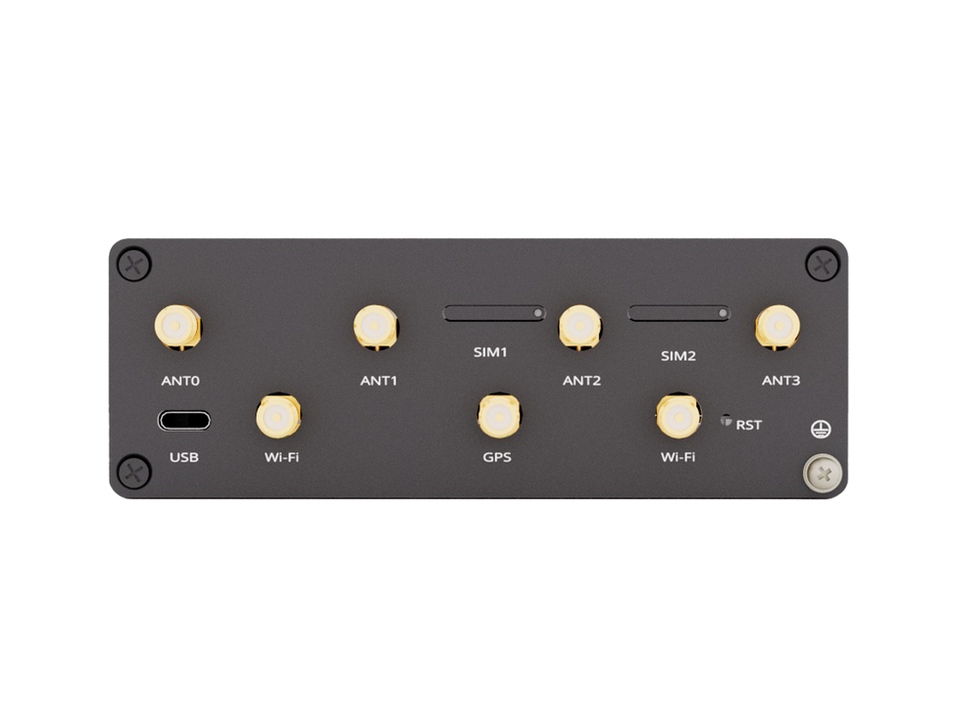

| Antenna | 2*RP-SMA Wi-Fi Antenna 4*SMA Cellular Antenna 1* GNSS SMA |
| Sim Card Slot | 2*4FF |
| GNSS | Yes |
| LED | Power, System, Wi-Fi, Cellular, Signal Strength |
| Power | 4-pin Molex |
| Reset Button | 1 |
| Grounding Screw | 1 |
| Housing Material | Aluminium |
| Ingress Protection | IP30 |
| Weight | 320g |
| Size | 114*88*40mm |
| Operating temperature | -40℃~75℃ |
| Operating humidity | 10% to 90% non-condensing |
| Installation | Desktop, Wall-mounted, Din-rail |
Software
| Network | Multi-WAN: ETH WAN, Cellular WAN WAN Failover, Load Balancing |
| Protocols | PPPoE, TCP, UDP, DHCP, NAT, DNS, NTP, SMTP, Telnet,ICMP, HTTP, HTTPS, TLS, ARP, VLAN, SSH2, DDNS |
| Cellular | 5G Sub-6GHz, NSA&SA Mode SMS, Dual-APN, Band Lock, PIN Management, IP Passthrough Sim auto-switch |
| Wi-Fi | Standard: IEEE 802.11 a/b/g/n/ac/ax Speed: WiFi AX1800 Frequency: 2.4GHz and 5GHz Channel Bandwidth: 20MHz/40MHz/80MHz Security: WEP, WPA-PSK, WPA2-PSK, WPA3 Encription: AES, TKIP Wi-Fi Users: Up to 48 Users Whitelist, Blacklist |
| VPN | PPTP, L2TP, IPSec, GRE, OpenVPN, WireGuard |
| MQTT | MQTT Broker, MQTT Publisher MQTT Gateway Data to Server |
| Modbus | Supported Mode: Server, Client Supported Types: TCP Supporetd Data Formats:8-bit INT / UINT, 16-bit INT / UINT, 32-bit float / INT / UINT, HEX, ASCII |
| Routing | Static Route, Policy Route, BGP, OSPF, RIP, NHRP, VRRP |
| Security | Firewall, DMZ, Anti-DDOS, Website Filtering, Access Control, 802.1x |
| Device Management | Web GUI, SSH, TR069, SNMP, SMS, RMS |
Manual & Documentation
Tech Specs
Click this link to visit the official website and browse the product specifications
